Fleet module · supported hardware

Supported GPS & telematics equipment

The WLTT Fleet module works with Jimi IoT and Concox devices on the TrackSolid platform. Below is the hardware we supply, install and connect to your account in Thailand.

Supply & installation

We source the devices, install them and register each unit under your company account.

Single dashboard

Live map, trips, geofences, alerts and video — all inside the same WLTT workspace as your staff and payroll.

One price per vehicle

100 THB per vehicle per month, minimum 3 vehicles. No separate platform fee.

Ideal for car rental companies

This hardware is a perfect fit for car & scooter rental businesses: track every rented vehicle live, set geofences, get anti-theft alerts and full trip history for each unit — protect your assets and settle disputes with customers.

100 THB / month per vehicle

Part of the Transport & GPS module

This equipment connects to the WLTT Transport & GPS module — live map, routes, geofences and alerts inside your dashboard.

Open the Transport & GPS module

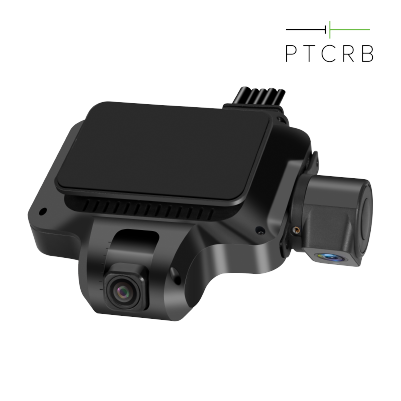

Jimi IoT JC450
Jimi IoT4G dashcams

JC450

Flagship 4G AI dashcam with ADAS and driver monitoring. Live video, two-way audio and full telematics in one device.

Specifications

Network
4G LTE / 3G / 2G
Positioning
GPS + BeiDou + LBS + Wi-Fi
Power
9–36 V DC
Battery
Built-in backup battery
Protection
IP52
Dimensions
135 × 62 × 40 mm
Installation
Windshield mount, hardwired

Key features

  • ADAS: lane departure, forward collision, headway warning
  • DMS: fatigue, phone use, smoking, distraction detection
  • Live streaming and remote video playback
  • Dual camera: road + cabin, up to 1080p
  • Two-way voice call with driver
  • Micro SD up to 256 GB + cloud upload

Best for: Long-haul trucks, delivery fleets, corporate cars

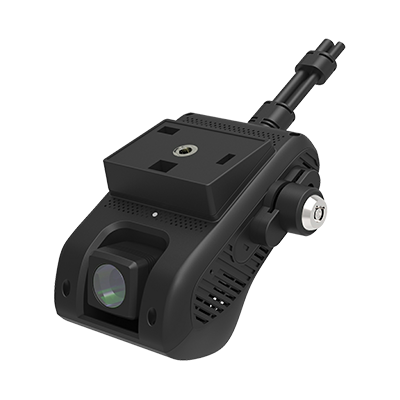

Jimi IoT JC400D
Jimi IoT4G dashcams

JC400D

Dual-lens 4G dashcam with live view, photo-on-demand and GPS tracking. The workhorse option for mixed fleets.

Specifications

Network
4G LTE
Positioning
GPS + BeiDou + LBS + Wi-Fi
Power
9–36 V DC
Battery
Backup battery 500 mAh
Protection
IP52
Dimensions
113 × 60 × 38 mm
Installation
Windshield mount, hardwired

Key features

  • Front 1080p + cabin 720p recording
  • Live streaming to the WLTT dashboard
  • Harsh acceleration / braking / cornering alerts
  • SOS button and remote photo capture
  • Micro SD up to 128 GB

Best for: Taxi, ride-hailing, light commercial vehicles

Jimi IoT JC261
Jimi IoT4G dashcams

JC261

Compact 4G dashcam for vehicles where a discreet device is preferred. Same cloud video and tracking features.

Specifications

Network
4G LTE
Positioning
GPS + BeiDou + LBS
Power
9–36 V DC
Battery
Built-in backup battery
Protection
IP52
Dimensions
Compact housing
Installation
Compact windshield mount

Key features

  • Front + cabin dual recording
  • Live view and remote snapshots
  • Vibration and collision detection
  • Geofence and speeding alerts

Best for: Company cars, small delivery vans

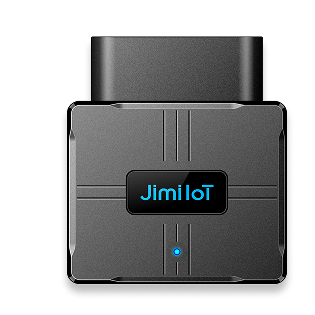

Jimi IoT VL502
Jimi IoTOBD trackers

VL502

Plug-and-play OBD tracker that reads engine data straight from the vehicle bus. Installed in under a minute.

Specifications

Network
4G LTE Cat-1
Positioning
GPS + BeiDou + LBS + Wi-Fi
Power
OBD-II port, 9–36 V
Battery
Built-in backup battery
Protection
IP41
Dimensions
48 × 45 × 25 mm
Installation
Plug into OBD-II port, no wiring

Key features

  • Reads DTC fault codes and engine RPM
  • Fuel consumption and mileage from the ECU
  • Driving behaviour scoring
  • Unplug and tamper alerts

Best for: Rental cars, leased fleets, quick rollouts

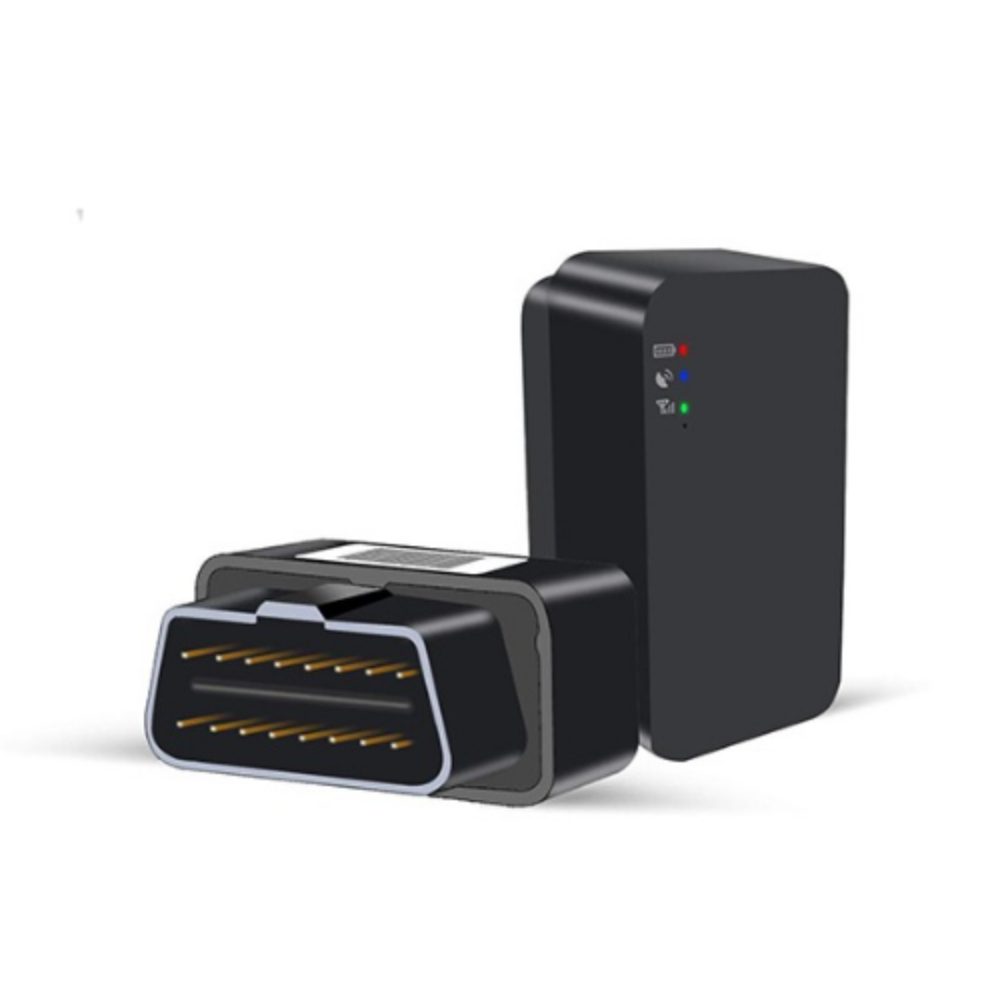

Concox OB22
ConcoxOBD trackers

OB22

Budget OBD tracker for basic location and mileage reporting. A cost-effective way to cover an older fleet.

Specifications

Network
2G GSM
Positioning
GPS + LBS
Power
OBD-II port, 9–36 V
Battery
Built-in battery 80 mAh
Protection
IP41
Dimensions
48.5 × 25 × 24 mm
Installation
Plug into OBD-II port

Key features

  • Real-time location tracking
  • Vehicle diagnostics and fault codes
  • Overspeed and vibration alarms
  • Power-cut alarm

Best for: Small businesses, basic tracking needs

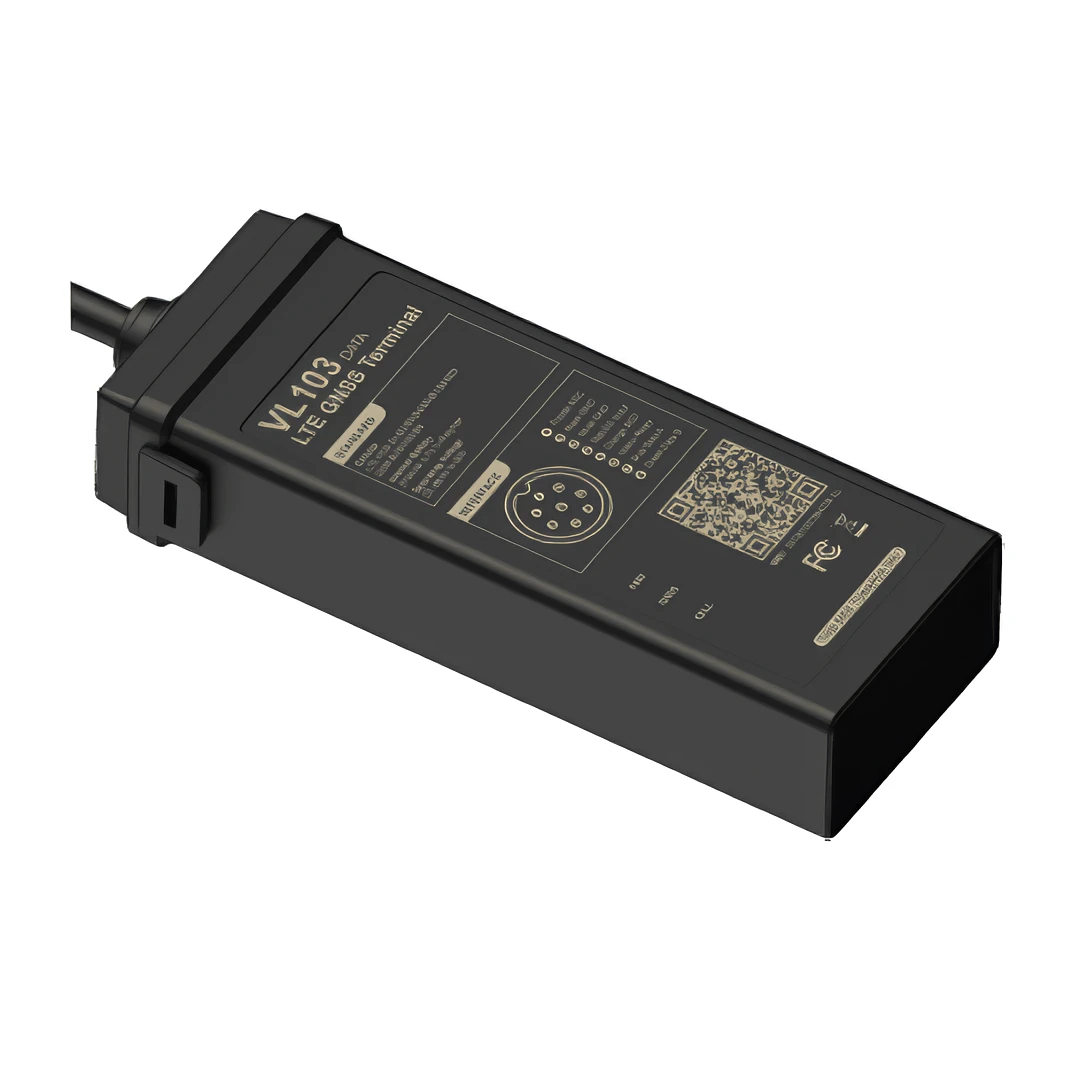

Jimi IoT VL103C
Jimi IoTWired trackers

VL103C

Hidden hardwired 4G tracker with wide voltage range. Works on cars, trucks, buses and motorcycles alike.

Specifications

Network
4G LTE Cat-1
Positioning
GPS + BeiDou + LBS + Wi-Fi
Power
9–90 V DC
Battery
Built-in battery 130 mAh
Protection
IP65
Dimensions
73 × 46 × 17 mm
Installation
Hardwired, hidden installation

Key features

  • Remote engine cut-off via relay
  • ACC ignition detection
  • Power-cut and tamper alarms
  • Wi-Fi assisted indoor positioning

Best for: Trucks, buses, motorcycle fleets, anti-theft

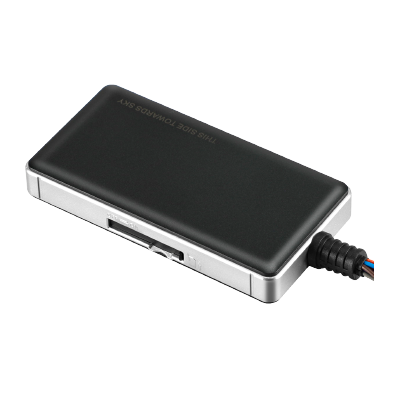

Concox GT06N
ConcoxWired trackers

GT06N

The industry classic. A proven, low-cost wired tracker with engine immobiliser support.

Specifications

Network
2G GSM
Positioning
GPS + LBS
Power
9–36 V DC
Battery
Built-in battery 450 mAh
Protection
IP54
Dimensions
86 × 46 × 16 mm
Installation
Hardwired with relay for engine cut-off

Key features

  • Remote engine cut-off
  • Geofence entry / exit alerts
  • Vibration, power-cut, SOS alarms
  • Voice monitoring option

Best for: Motorcycle rental, budget vehicle tracking

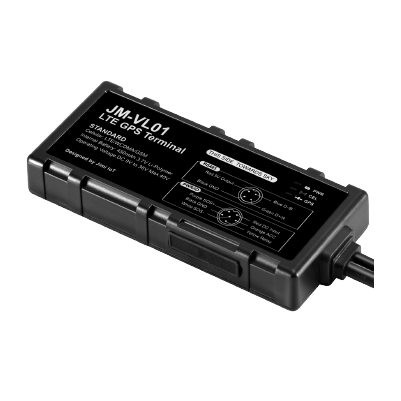

Jimi IoT JM-VL01
Jimi IoTWired trackers

JM-VL01

Entry-level 4G wired tracker. Reliable location, ignition status and alarms at the lowest hardware cost.

Specifications

Network
4G LTE
Positioning
GPS + BeiDou + LBS
Power
9–36 V DC
Battery
Built-in backup battery
Protection
IP65
Dimensions
Compact housing
Installation
Hardwired, compact hidden mount

Key features

  • Real-time GPS tracking
  • ACC status and trip reports
  • Overspeed and geofence alerts
  • Low power consumption in sleep mode

Best for: Large fleets on a tight hardware budget

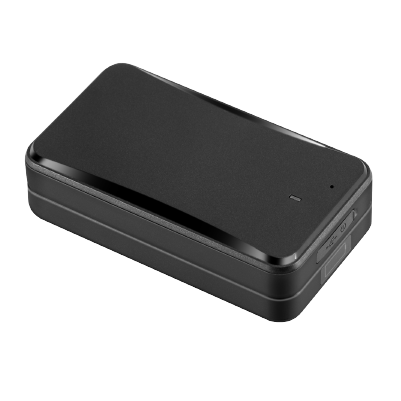

Jimi IoT LL301
Jimi IoTBattery asset trackers

LL301

Heavy-duty battery asset tracker with a huge 10 000 mAh cell. For trailers, containers and unpowered equipment.

Specifications

Network
4G LTE Cat-M / NB-IoT / 2G
Positioning
GPS + BeiDou + LBS + Wi-Fi
Power
Battery powered (standalone)
Battery
10 000 mAh, up to 3 years
Protection
IP67
Dimensions
105 × 68 × 34 mm
Installation
Magnetic mount, no wiring needed

Key features

  • Up to 3 years of battery life
  • Strong magnets and IP67 waterproof body
  • Tamper and light sensor alarms
  • Configurable reporting interval

Best for: Trailers, containers, generators, construction gear

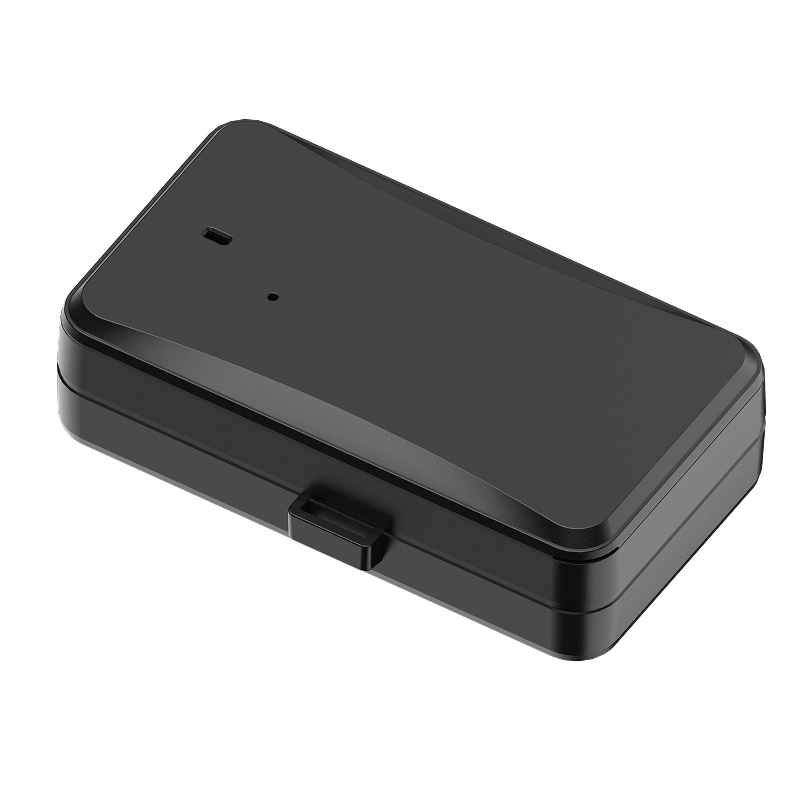

Jimi IoT LL01
Jimi IoTBattery asset trackers

LL01

Portable magnetic tracker for temporary monitoring and covert vehicle tracking. No installation required.

Specifications

Network
2G / 4G (model versions)
Positioning
GPS + BeiDou + LBS + Wi-Fi
Power
Battery powered (standalone)
Battery
5000 mAh, up to 12 months
Protection
IP65
Dimensions
86 × 55 × 26 mm
Installation
Magnetic, attach in seconds

Key features

  • Up to 12 months on a single charge
  • Motion-triggered wake-up
  • Geofence and movement alerts
  • Compact, easy to hide

Best for: Rental equipment, temporary jobs, valuable cargo

Specifications are provided by the manufacturers and may vary by hardware revision. Availability in Thailand is confirmed at the time of ordering.

Not sure which device fits your fleet?

Tell us what you drive and how you operate — we will recommend the right hardware and quote supply and installation.
